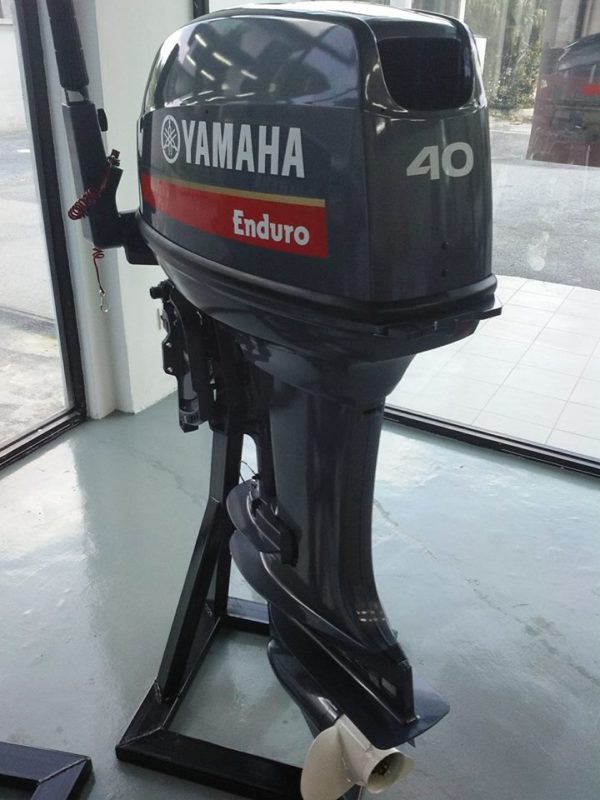

Are you looking for a reliable and powerful outboard motor? Look no further than the Yamaha 2-Stroke 40HP Long Shaft Outboard Motor.
This engine is perfect for boats of all sizes, thanks to its versatility and power. With a maximum output of 29.4 kilowatts (kW) or 40 horsepower (hp) at 5000 revolutions per minute (rpm), this outboard motor will provide plenty of power for propulsion and speed. The long shaft also offers extra power and torque, making it perfect for larger boats or those with heavier loads. The engine is started either manually or electrically and features a forward-neutral-reverse gear system for easy operation. A trim and tilt system lets you adjust the engine angle for optimum performance, while a fuel tank volume of 24 litres ensures long-running times.
Whether cruising around the lake or fishing in open waters, the Yamaha 2-Stroke 40HP Long Shaft Outboard Motor will quickly get you there.
| Parameter | Measuring unit | T40BMS | T40BML | T40BWS | T40BWL | T40FWS | T40FWL |
| Length | mm(in.) | 1106(43.5) | 1106(43.5) | 645(25.4) | |||
| Width | mm(in.) | 408(16.0) | 408(16.0) | 372(14.6) | |||
| Height | mm(in.) | 1213(47.8) | 1340(52.8) | 1213(47.8) | 1340(52.8) | 1213(47.8) | 1340(52.8) |
| Transom height | mm(in.) | 424(16.70) | 551(21.70) | 424(16.70) | 551(21.70) | 424(16.70) | 551(21.70) |
| Net Weight | kgs | 77 | 79 | 80.3 | 82.3 | 79.5 | 81.5 |
| Full throttle operating range | r/min | 4500~5500 | |||||
| Maximum output | kw(hp)@r/m | 29.4(40)@5000 | |||||
| Idling speed | r/min | 950~1050 | |||||
| Engine type | 2 Stroke | ||||||
| Cylinder quantity | 2 | ||||||
| Displacement | cm3 | 703 | |||||
| Bore×Stroke | mm(in.) | 80*70(3.15*2.76) | |||||
| Ignition System | CDI | ||||||
| Control system | Tiller | Remote Control | |||||
| Starting System | Manual | Electrical /Manual | |||||
| Gear positions | Forward-neutral-reverse | ||||||
| Gear ratio | 2.0(26/13) | ||||||
| Trim and tilt system | Manual tilt | ||||||
| Fuel tank volume | L | External 24 | |||||
| Maximum fuel | L/h | 20 | |||||
| Engine fuel ratio | 50:1 | ||||||
| Gear oil | ml | 430 | |||||
| Propeller specification | in | 3-11 1/8″ x 13″ | |||||
